Hatch Pattern Generator

Version 1.0

Create your own AutoCAD custom hatch patterns of any size using Hatch Pattern Creation tool. The AutoCAD PAT file generated can be saved onto your PC.

Learn More

Hatch Pattern Generator

Version 1.0

What's New.. ?

  • Step 01: Create a folder named "HATCHES" on your C:\ Drive

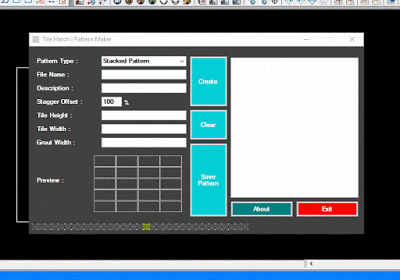

  • Step 02: Open the Program and fill the column with data, save filename.pat (Do not Change the File Name) to "C:\HATCHES"
  • Step 03: Open AutoCAD > Type Options (OP) > Files > Support File Search Path > ADD C:\HATCHES and Apply
  • Step 04: Type HATCH(H) > Swatch > Custom > Select Your Hatch From the List and apply
Smart Phone

Application

Reviews

"Create your own AutoCAD custom hatch patterns of any size using Hatch Pattern Creation tool. The AutoCAD PAT file generated can be saved onto your PC"

The hatch Creator can also create staggered joints (like brickwork).
